Okular / Viewfinder for InfiRay CH50/CL42
Product information "Okular / Viewfinder for InfiRay CH50/CL42"

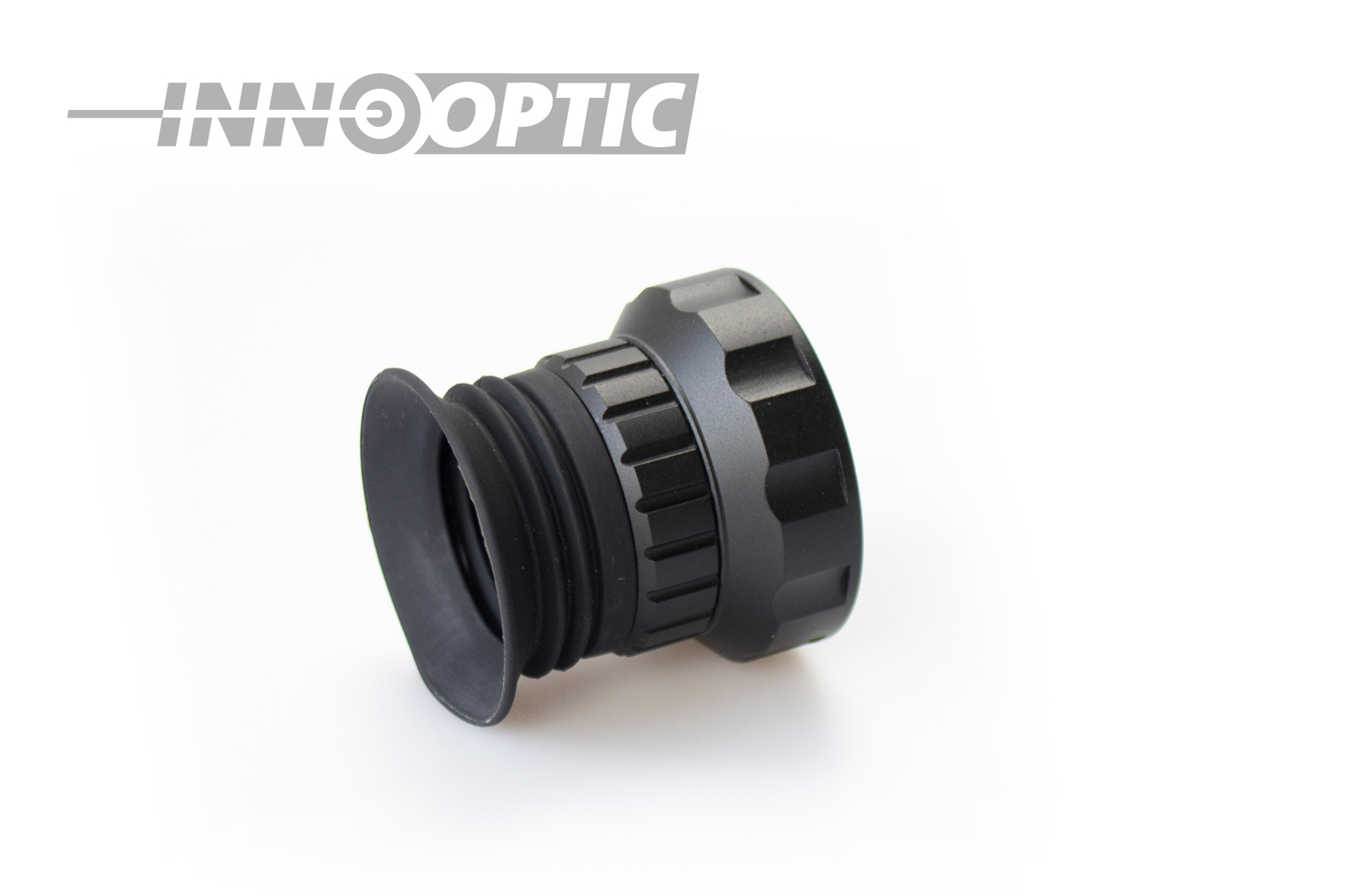

Eyepiece / Viewfinder
for InfiRay CH50 V1 & CL42, not suitable for V2 version.

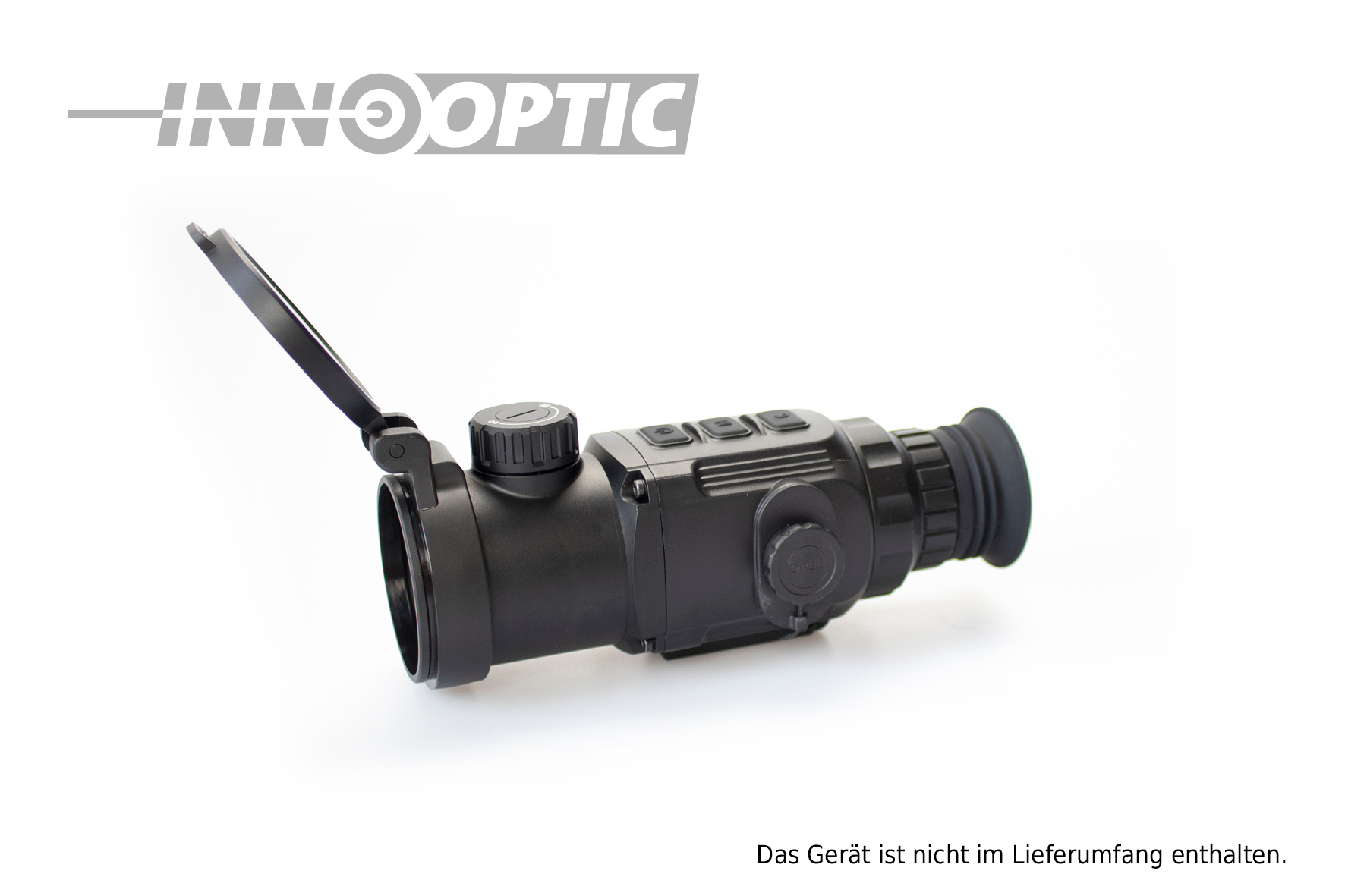

Serves as attachment to use the attachment optics as observation device.
Order No. Z01-99-XE-OL
NYX-Vision GmbH
Ernst-Befort-Str. 4a
35578 Wetzlar, DE
Kontakt: info@nyx-vision.com
Accessory Items
%
InfiRay CH50 V2
From
€2,250.00*
Z01-XE-18
InfiRay CH50 V2 (without eyepiece, fixed collimator lens)
The new CH50 thermal imager has an extremely high resolution detector with 640 x 512 pixels. The new sensor technology with 12µm pixel interval produces a brilliant image. With an observation distance of up to 2,597m, the thermal imager is well designed. A high-resolution OLED display with 1,024 x 768 pixels is built into the device. The lens diameter is 50 mm. Infiray offers a unique experience during use by knowing the sensor, display and image of the thermal imagers.
The CH50 V2 has the following technical features:
Sensor: VOx
Resolution: 640x512 px
Hz: 50 Hz
Pixel size: 12 µm
NETD: <50 mK
focal length: 50 mm
Protection class: IP66
Size: 68 x 60 x 166 mm
Weight: 420 g
Collimator lens: firmly bonded
Operating time: 3.5 hours
Operating temperature: -20° C / + 50 ° C
Power supply: 2x CR123A 3 V or 2x rechargeable battery ICR16340 3.7 V
Standby mode: yes
Magnification: 1x
Screen: OLED, 1024 x 768 px
Color settings: white hot, black hot, red hot, color, hot target highlight
Scope of delivery:
CH50 V2 thermal imaging optics, video and USB cable, bag, charger 2x, 2pcs. Li-Ion AKKU, remote control (without battery), battery extension
